TKG Series
Better than stock straight out of the box. Twin-tube, nitrogen charged, valved for a truck carrying its own weight and not much more.
| Best for | Daily drivers, light accessories, first-time upgraders |
| Damping | Fixed valving |
| Lift height | 2 in / 50 mm |
What's inside a TKG shock
The right column explains what each number controls on the vehicle — not how it feels.
| Damping |
Fixed valving
How many positions the valving can be set to without a rebuild
|
| Piston rod | 18 mm chrome
Rod diameter sets how much side load it takes before it flexes
|
| Bore | 35 mm
More oil volume — damping fades less on long corrugations
|
| Cylinder | 57 mm
Outer body diameter; governs oil capacity and heat shedding
|
| Internal design | Twin-tube
Oil and gas in separate chambers; more tolerant of dents than monotube
|
| Charge | Nitrogen
Pressurised gas reduces oil aeration, so damping holds as the shock heats
|
| Lift height | 2 in / 50 mm
Clearance gained at the hub, unladen
|
| Finish | Zinc-phosphate + powder coat
Corrosion protection for coastal and salted-road use
|
Kits in this series
TOYOTA Prado 120 Lift Kit | Nitrogen Gas Suspension I TKG Series
TKG Series
$1,900.00 ref. retail
TOYOTA Prado 120 Lift Kit | Nitrogen Gas Suspension I Full Set TKG Series
TKG Series
$2,100.00 ref. retail
TOYOTA Hilux Revo 2005 - 2015 Lift Kit | Nitrogen Gas Suspension I TKG Series
TKG Series
$1,200.00 ref. retail
TOYOTA Prado 90/95 1996-2002 Lift Kit | Nitrogen Gas Suspension I TKG Series
TKG Series
$1,800.00 ref. retail
TOYOTA Tacoma 1998-2004 Lift Kit | Nitrogen Gas Suspension I TKG Series
TKG Series
$1,200.00 ref. retail
GWM Poer/Power/Cannon(Rear Leaf) 2019+ Lift Kit | Nitrogen Gas Suspension I TKG Series
TKG Series
$1,200.00 ref. retail

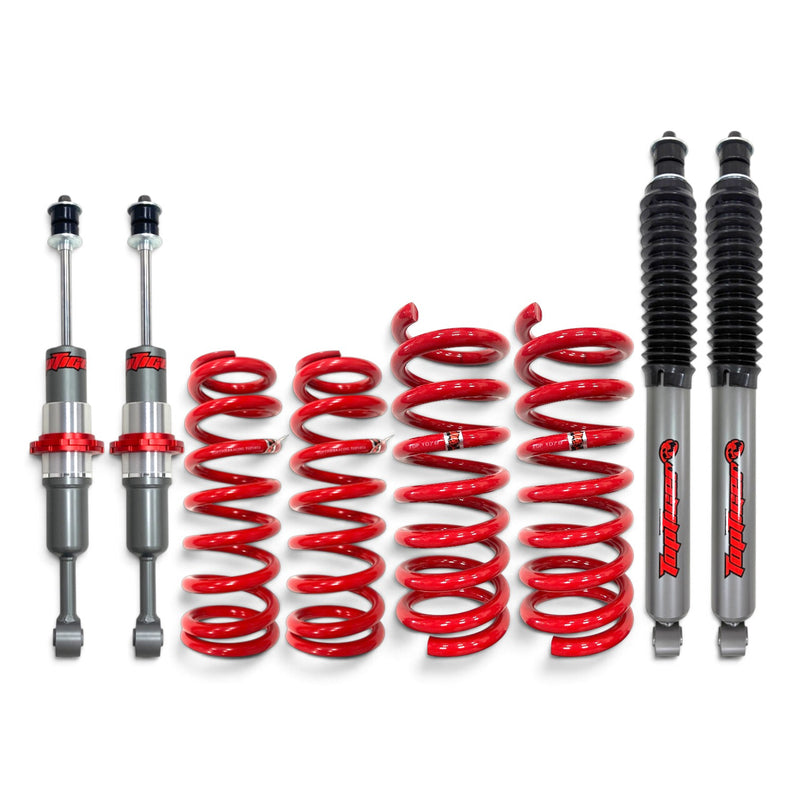

MITSUBISHI Pajero / Montero NM-NX / V7 series & V9 series (4 Doors) Lift Kit | Nitrogen Gas Suspension I TKG Series
TKG Series
$1,800.00 ref. retail
TOYOTA Hilux Vigo 2005 - 2015 Lift Kit | Nitrogen Gas Suspension I TKG Series
TKG Series
$1,200.00 ref. retail

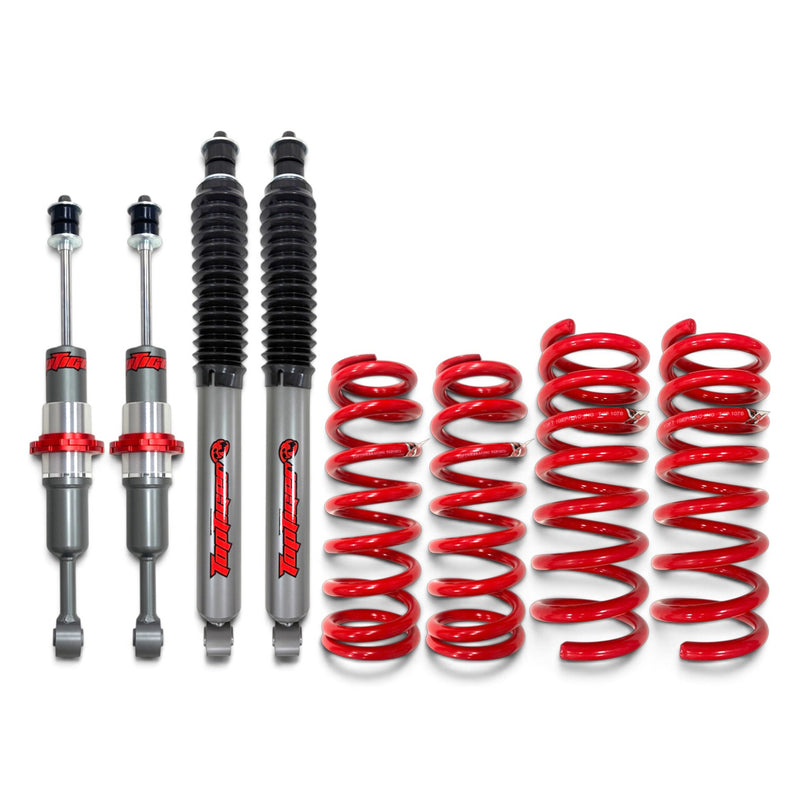

MITSUBISHI Pajero / Montero NM-NX / V6 series & V8 series (2 Doors) Lift Kit | Nitrogen Gas Suspension I TKG Series
TKG Series
$1,800.00 ref. retail
